Product Highlights

The YS-MB8361   LED matrix module is available in single-color, dual-color temperature, and RGB versions to meet diverse commercial lighting and light box project requirements.

· Single-color version: Adopts high-brightness 2835 LED chips, delivering abundant brightness and uniform, stable light emission.

· Dual-color temperature version: Equipped with 2835 dual-color temperature LEDs, mixing two chips to achieve adjustable color temperature from 2700K to 6500K, with a luminous efficacy of up to 110-130lm/W.

· RGB version: Features 3030 RGB full-color LEDs, offering rich and variable colors to support dynamic, colorful lighting effects.

Application Scope

Compatible with single-sided light boxes with a thickness of 8-15cm, it is widely used in:

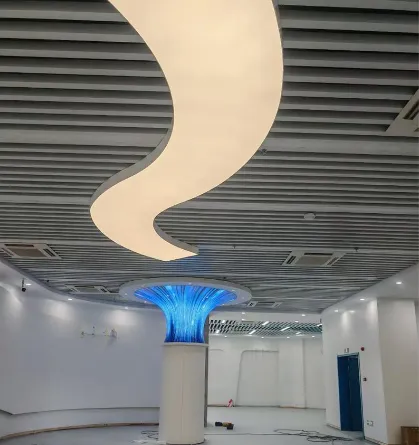

· Standard, special-shaped, medium, large, and extra-large fabric light boxes

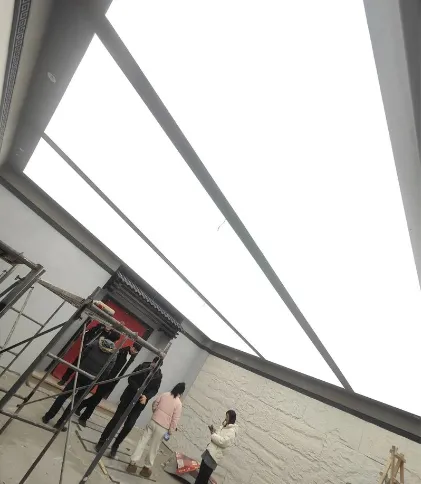

· Soft ceiling lighting in shopping malls, airports, and exhibition halls

· Backlighting for luxury stone backgrounds and decorative translucent stone

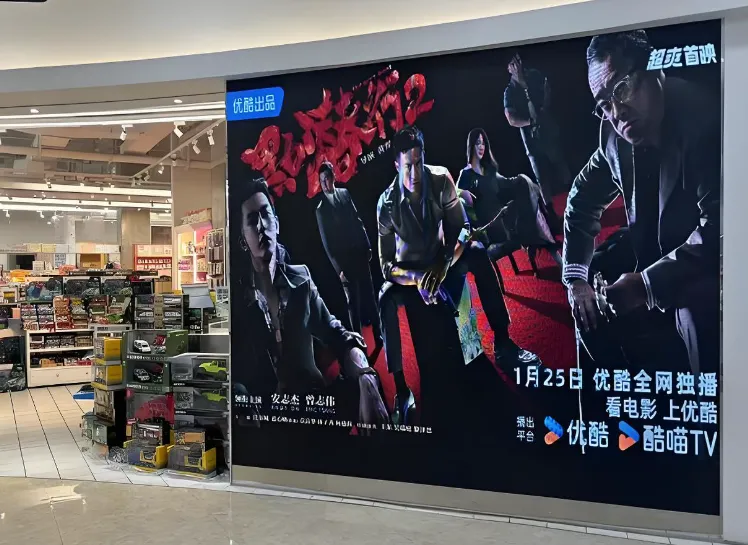

· Chain store facades, indoor advertising light boxes, and various engineering lighting systems

Performance & Application Features

· The product boasts high brightness, high luminous efficacy, flexible color/color temperature control, easy installation, and uniform light emission with no dark areas, satisfying the needs of high-end commercial displays, engineering lighting, and customized light box backlighting.

· Light box thickness directly impacts illuminance and layout design: thicker boxes experience greater light loss and slightly lower illuminance with the same number of modules, but allow wider module spacing for energy savings; thinner boxes (80mm) require higher module density to ensure uniformity, resulting in higher power consumption; thicker boxes (120/150mm) can reduce module usage and significantly lower power consumption.

· Scenario matching:

o 80mm: Ideal for high-brightness applications such as shopping mall light boxes and storefronts.

o 100mm: Suitable for standard indoor light boxes and brand displays.

o 120/150mm: Perfect for energy-efficient applications including large soft ceilings, luxury stone backlighting, and special-shaped light boxes.
