LED Slim Illuminated Advertising Display – Ideal for Restaurants, Shops, and Bars
Presenting a sleek LED illuminated light-box that brings a contemporary edge to any indoor setting. Utilized ideally in restaurants, bars, takeaways and retail spaces, our LED light box employs state-of-the-art LED technology. It offers a luminous, cost-effective, and durable alternative to traditional lighting solutions. The ultra-slim light box is designed with PMMA high transparency light guide plate, diffusion film, and reflective paper, ensuring even and soft light.
◆ The thickness of the ultra-thin light box is only 9mm；
◆ The light box has a simple and elegant appearance, with decorative silk screen on the edges;
◆ There is a canvas (lamp) socket on one side of the light box, which makes it easy to replace the lamp;
◆ Using high light efficiency 4014LED, with a long lifespan and complete installation accessories, corresponding accessories can be selected according to different uses.
◆ Each board is engineered for optimal performance, with long-life, high-intensity LEDs that offer over 50,000 hours of vivid lighting.
◆ Bright and Safe: Offers bright display solutions without the UV radiation, making it a safer, eco-conscious choice for your premises.
◆ Energy-Saving: Fitted with premium LEDs that shine bright while saving energy, they consume up to 70% less power than traditional lighting.
◆ Hassle-Free Installation: Comes with all necessary fittings for quick Ceilling mounting/wall mounting/Tabletop/Floor stand types and easy maintenance with a user-friendly poster changing mechanism.
◆ Modern Ultra-Thin Design: Our LED light boxes sport an ultra-slim profile, giving your space a modern and sophisticated look while being incredibly practical and versatile.
Model No. | YS-DE1A1-W24 | YS-DC2A2-W24 | YS-DC2A3-W12 | YS-DC2A4-W12 | YS-DC2A5-W12 |
Power(W) | 22W | 12W | 9W | 5W | 4W |
Input Voltage(V) | 24V | 12V | |||
LED Type | SMD4014 | ||||
CCT(K) | 6000K(Pure White) / Optional customization | ||||
CRI(Ra) | >80 | ||||
Ac Adapter | 24V/1.5A | 24V/1.5A | 12V/1A | 12V/1A | 12V/1A |
Photos Size(mm) | A1(594x841mm) | A2(420x594mm) | A3(297x420mm) | A4(210x297mm) | A5(148x210mm) |
Light Box Size(mm) | 609x848X9.0mm | 435*600x9.0mm | 427*312x9.0mm | 304*225x9.0mm | 217*163x9.0mm |
Net Weight (kg) | 2.4kg | 1.16 kg | 0.63 kg | 0.35 kg | 0.205 kg |
Input Interface | DC5521(Female ) | ||||
Photos Material | 180K light transmission PVC | ||||
Color | Black / Sliver | ||||
Shell material | Aluminum + PC /Glass | ||||
Operation Temperature | -20℃~+45℃ | ||||
Storage Temperature | -25℃~+55℃ (25℃ is best-fit) | ||||
IP Rating | IP20 | ||||

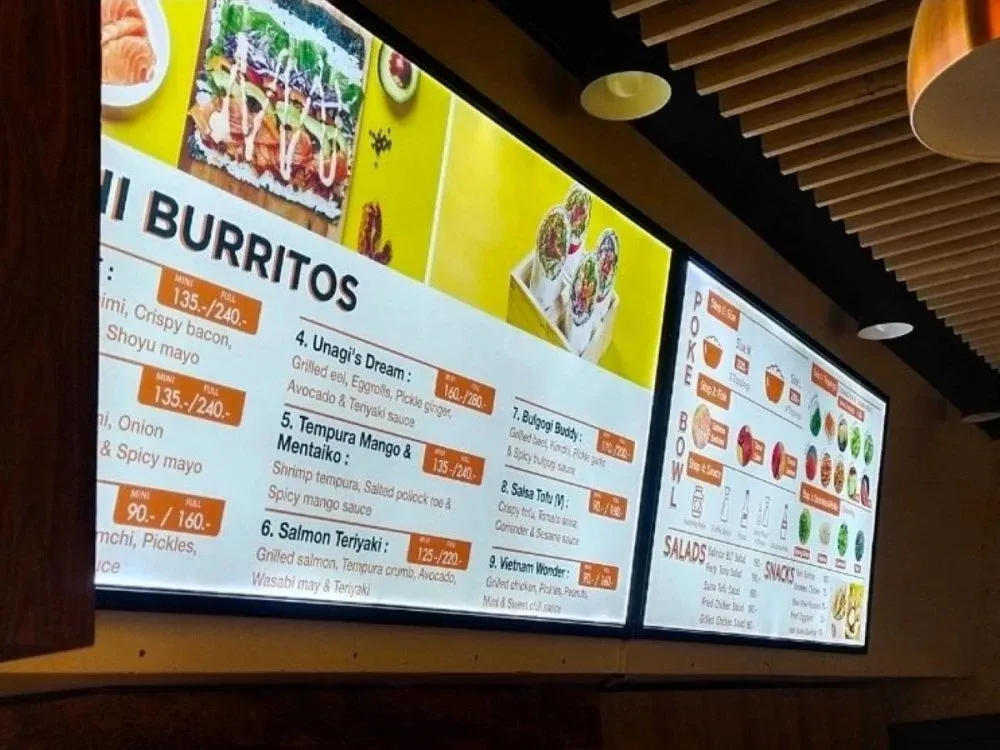

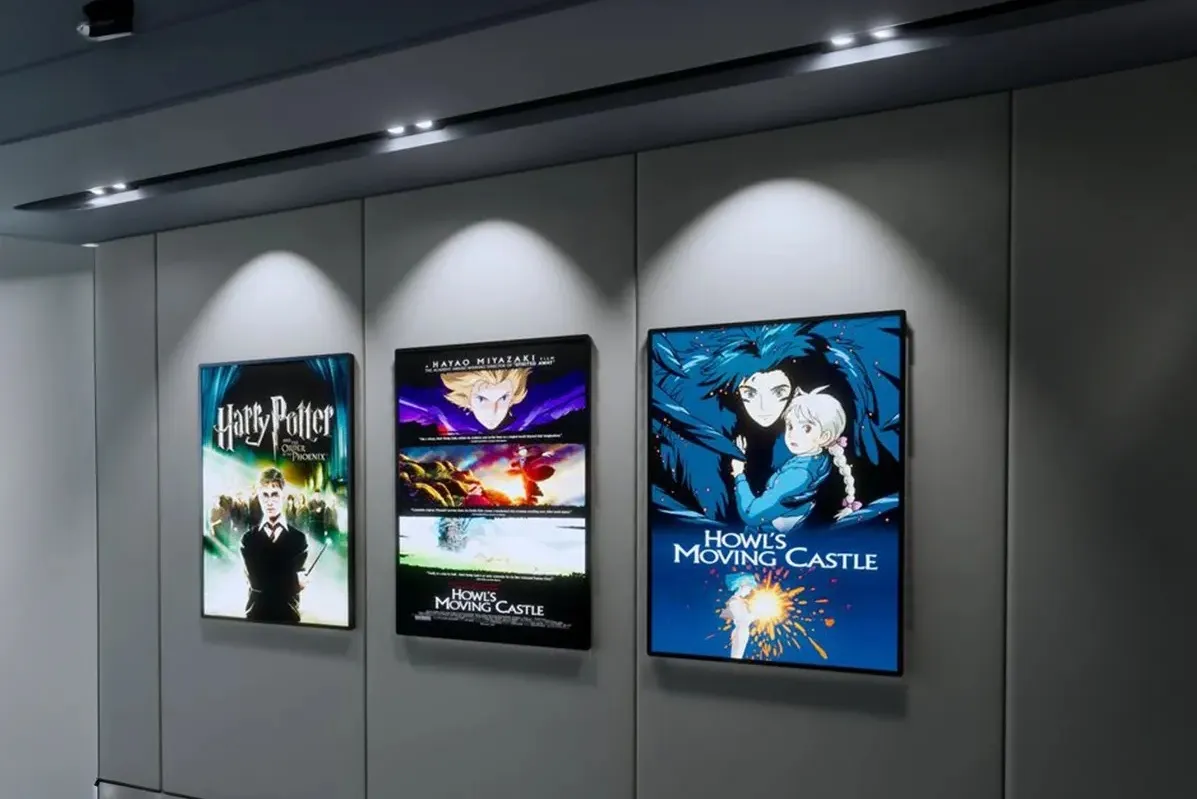

Applications: Indoor public places such as supermarkets, shops, hotels, leisure clubs, cinemas, subway stations, airport, KFC, McDonald's, cafes, tea bars, exhibitions etc.
Looking for bespoke designs? Our expert design team can craft exquisite graphics for your signage needs and print them onto specialized back-lit media sheets.
The size of the light box can also be customized, and the installation methods can be selected as follows.
