Today, as the advertising industry pursues high efficiency, energy saving and visual innovation, Shenzhen YESUN LED LTD has launched a terminal-type wire-free installation LED Lattice Light Bar product. With its breakthrough wire-free installation technology, it provides efficient lighting solutions for supermarkets, exhibitions, office environments, etc. This product has been successfully launched in various European countries and has become a new choice for advertising sign merchants and LED distributors.

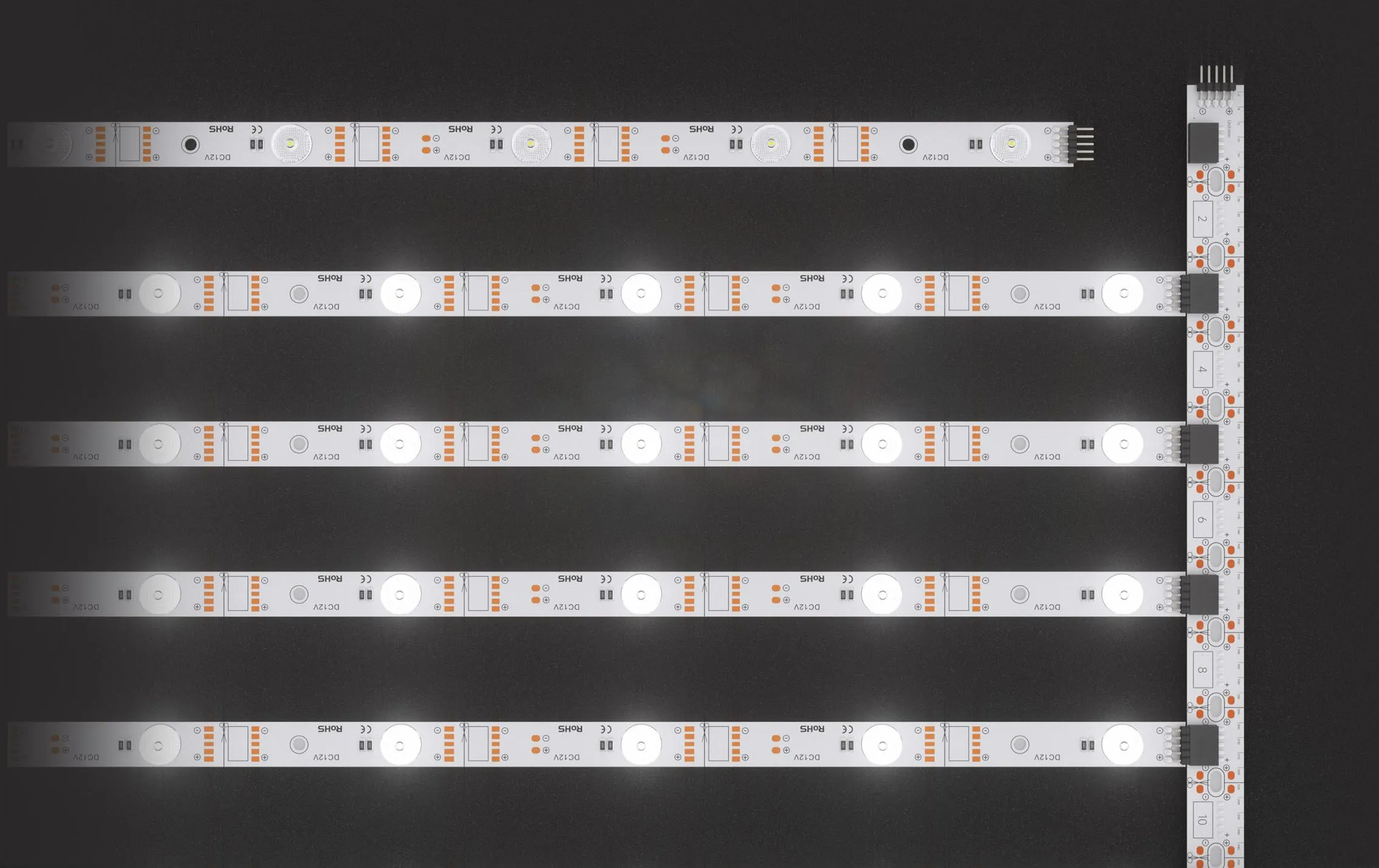

The model of this LED Lattice light bar launched by SHENZHEN YESUN LED LTD is YS-DF90 312-196. It stands for DC12V, 12LEDs, 12W, 175°Lens, SMD2835, and is a wire-free terminal LED lattice light bar with a size of 960*15*7.6mm.
Why choose our LED Lattice Light Bar?
l 【Easy to install】- The product uses plug-in power, and the plug-in power can be installed at a selected spacing, which is convenient for installation.Installation time is shortened by 300%.
l 【Convenient for cutting】- LED spacing 80mm, each 1LED can be cut, and plug-in connectors between the boards, easy to use light boxes of various sizes.
l 【High light efficiency】- High light efficiency SMD2835 Chip, can reach 130Lm / W
l 【Good heat dissipation】- Using aluminum PCB board
l 【Customizable length】- The length can be customized according to your needs. Our regular types have two lengths: 960mm and 480mm.
l 【Uniform light】- With Large beam angle 175 degree
l 【Application】- Suitable for 4-15cm sign letter or airports, subways, banks, buildings, shopping malls and other advertising etc single side light box

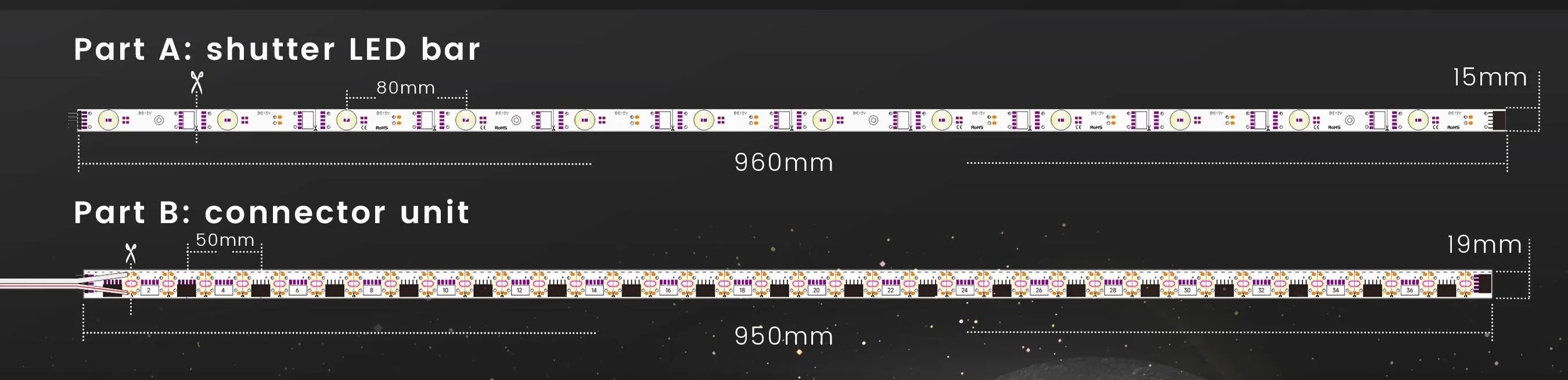

Dimension of terminal connect board:
Good Lighting test data:
Light box thickness （mm） | LED Spacing （mm） | Qty of led bar (m/㎡) | Surface illumination (lux) | Power（W/㎡） |
40 | Dy=100 | 10 | 6000-9000 | 120 |
50 | Dy=100 | 10 | 5000-8000 | 120 |
60 | Dy=150 | 6.6 | 4000-4500 | 79 |
80 | Dy=150 | 6.6 | 3500-4500 | 79 |
100 | Dy=200 | 5 | 2000-3000 | 60 |
120 | Dy=200 | 5 | 1500-3000 | 60 |
At present, our LED Lattice bar has been widely used in many European countries and has been highly praised by customers, creating great value for customers.
It has passed many international certifications such as CE and RoHS, and provides a 3-year warranty service. We are now recruiting investors worldwide, and the first batch of orders can enjoy exclusive preferential policies.
