Today, as the advertising industry pursues high efficiency, energy saving and visual innovation, Shenzhen YESUN LED LTD has launched a terminal-type wire-free installation LED Lattice Light Bar product. With its breakthrough wire-free installation technology, it provides efficient lighting solutions for supermarkets, exhibitions, office environments, etc. This product has been successfully launched in various European countries and has become a new choice for advertising sign merchants and LED distributors.
The model of this LED Lattice light bar launched by SHENZHEN YESUN LED LTD is YS-DF90 312-196/YS-DF90 324-196-TW/YS-DF90 118-196-RGBW.

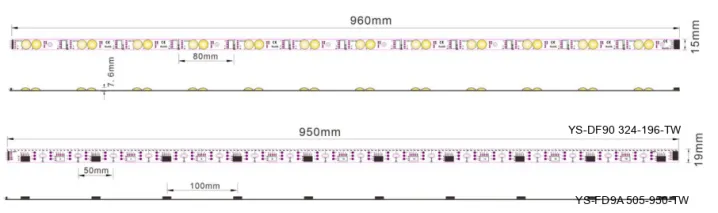

YS-DF90 312-196 960*15*7.6mm 12LEDs SMD2835 175° lens Non-waterproof Shutter LED Bar Constant voltage DC12V Center distance: 80mm
YS-FD9A505-950-TW: 950*19*4mm, terminal connect board for LED bar, length:950m, distance cm, single outlet with 18awg wire

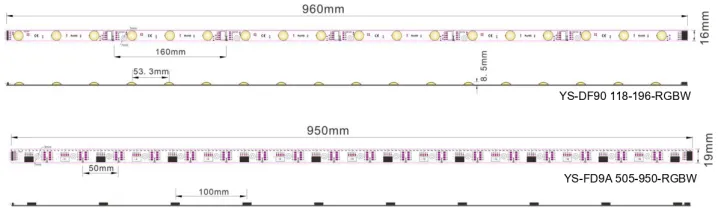

YS-FD9A 505-950-RGBW: 950*19*4MM, Terminal connect board for LED Bar, Length:950m, distance 5cm，single outlet with 18awg wire

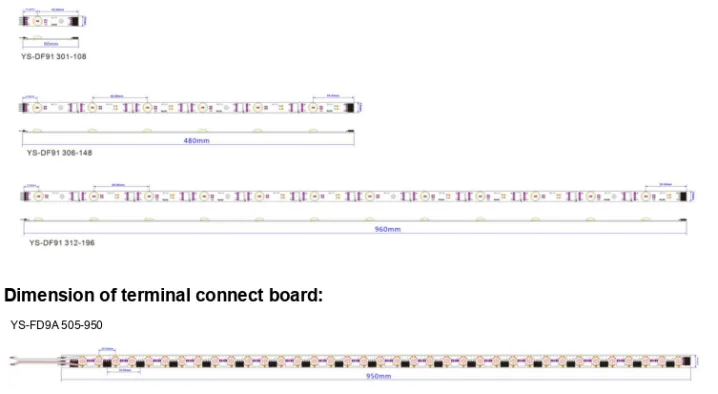

YS-DF90 312-196：Single color
YS-FD9A505-950-TW
YS-FD9A 505-950-RGBW
Why choose our LED Lattice Light Bar?
l 【Easy to install】- The product uses plug-in power, and the plug-in power can be installed at a selected spacing, which is convenient for installation.Installation time is shortened by 300%.
l 【Single color】- High light efficiency SMD2835 Chip, can reach 130Lm / W
l【RGBW】SMD5050RGBW Chip, Diverse and variable colors.
l【CCT】High light efficiency SMD2835 Chip, CCT 2700K +6500K can reach 110-130Lm / W.
l 【Good heat dissipation】- Using aluminum PCB board
l 【Uniform light】- With Large beam angle 175 degree

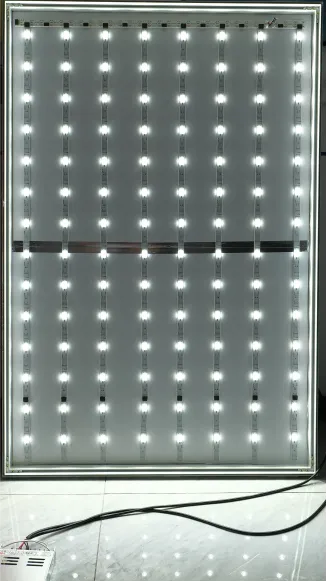

l 【Application】- Suitable for 4-15cm sign letter or airports, subways, banks, buildings, shopping malls and other advertising etc single side light box
Single color

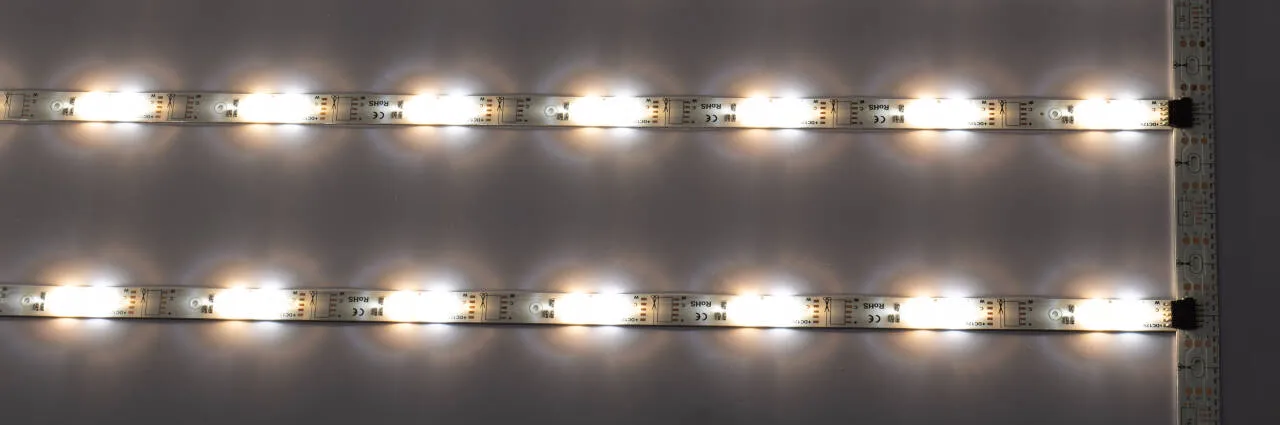

CCT:

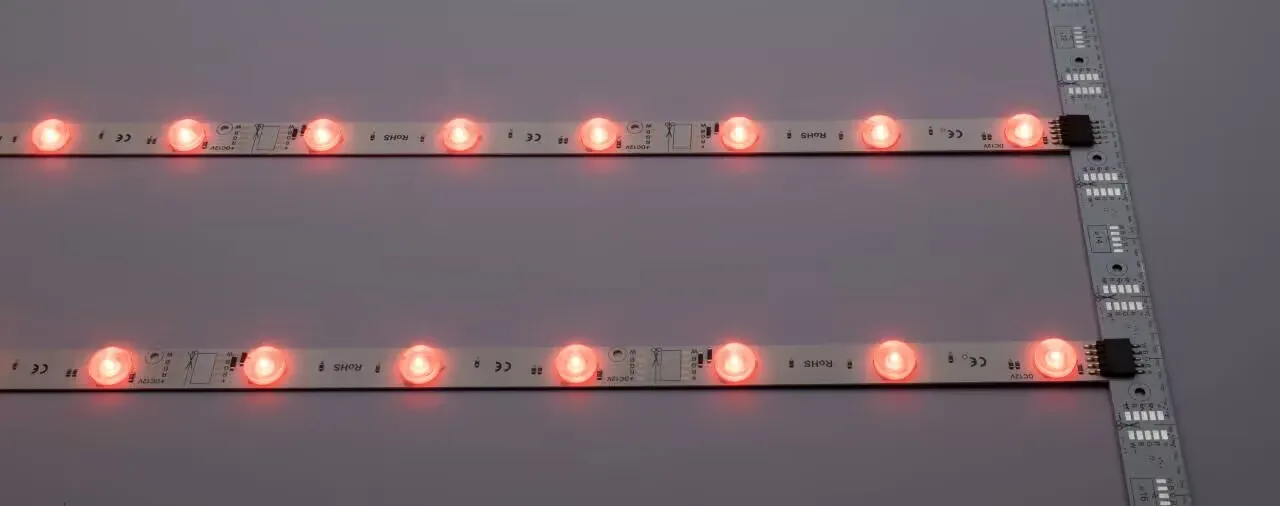

RGBW：
Single color test data:
Light box thickness （mm） | LED Spacing （mm） | Qty of led bar (m/㎡) | Surface illumination (lux) | Power（W/㎡） |
40 | Dy=100 | 10 | 6000-9000 | 120 |
50 | Dy=100 | 10 | 5000-8000 | 120 |
60 | Dy=150 | 6.6 | 4000-4500 | 79 |
80 | Dy=150 | 6.6 | 3500-4500 | 79 |
100 | Dy=200 | 5 | 2000-3000 | 60 |
120 | Dy=200 | 5 | 1500-3000 | 60 |

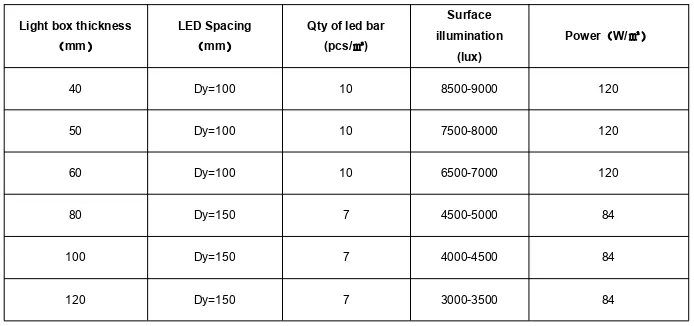

Double color test data:

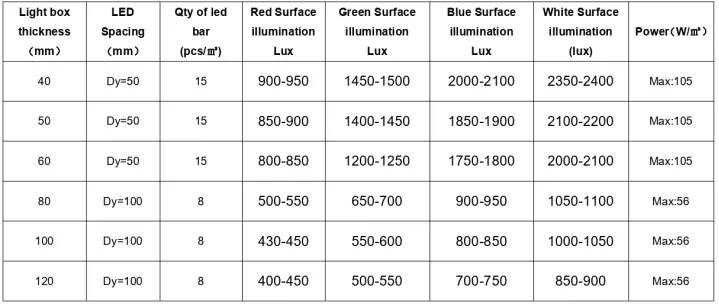

RGBW test date:
At present, our LED Lattice bar has been widely used in many European countries and has been highly praised by customers, creating great value for customers.
It has passed many international certifications such as CE and RoHS, and provides a 3-year warranty service. We are now recruiting investors worldwide, and the first batch of orders can enjoy exclusive preferential policies.
