S shape Side View LED Flexible Strip

S shaped Side View LED Flexible Lens Strips Illuminate the Infinite Possibilities of Circular Light Boxes

Product Features

◎ Utilizes high-power 2835 LED chips for high brightness,

◎ Single LED (55.5mm) are cuttable and highly adaptable, easy to cut, and convenient for power connection via terminal blocks;

◎ The design features an S-shaped profile, with the adhesive backing formed in a single die-cutting process, allowing for bidirectional

bending;

◎ It use an anti-yellowing silicone waterproofing process;

◎ The 10*60° lens angle and light distribution design allow for side mounting of the product, resulting in uniform illumination with no dark

areas;

◎ It uses blue thermal conductive adhesive for installation, making it convenient and quick to use;

◎ With CE RoSH certificated.

Product model: YS-RSD2385W18

DC12V, IP65 silicone glued Side view LED flexible strip, 18 LEDs/M, SMD2835 with lens beam angle 10*60°

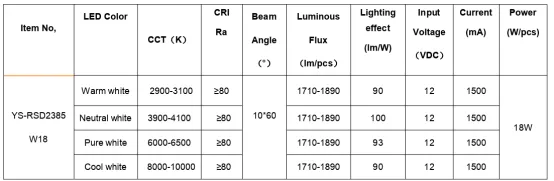

Parameters：

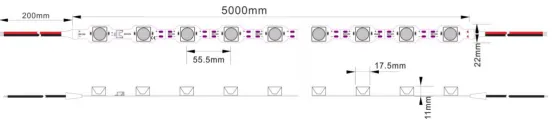

Demension:

Application:

◎ Suitable for indoor single-face or double-face light boxes with depth of 60-120mm or more, and light box width or diameter (lighting distance) need be less than 1200mm.

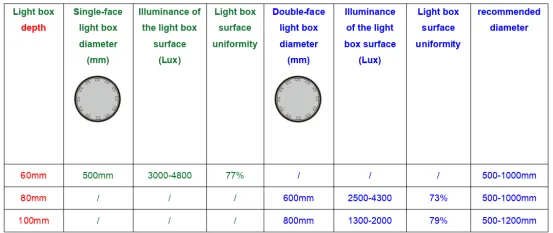

Application recommendations (round light boxes) - reference data：

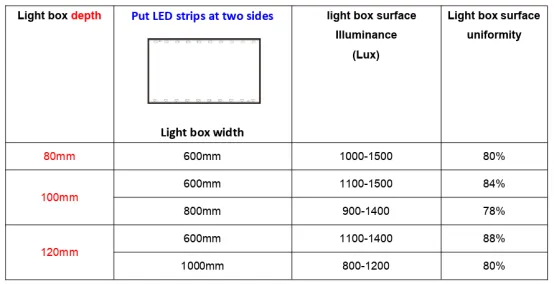

Application Recommendations (Double-face rectangular light box) - Reference Data：
